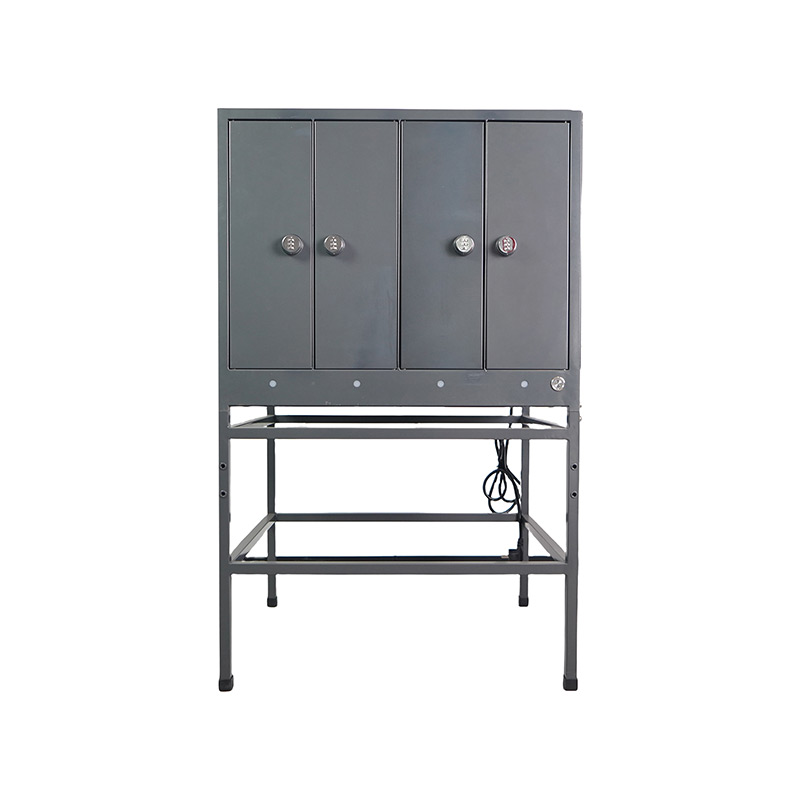

Electric vehicle battery charging cabinet ENGLISH

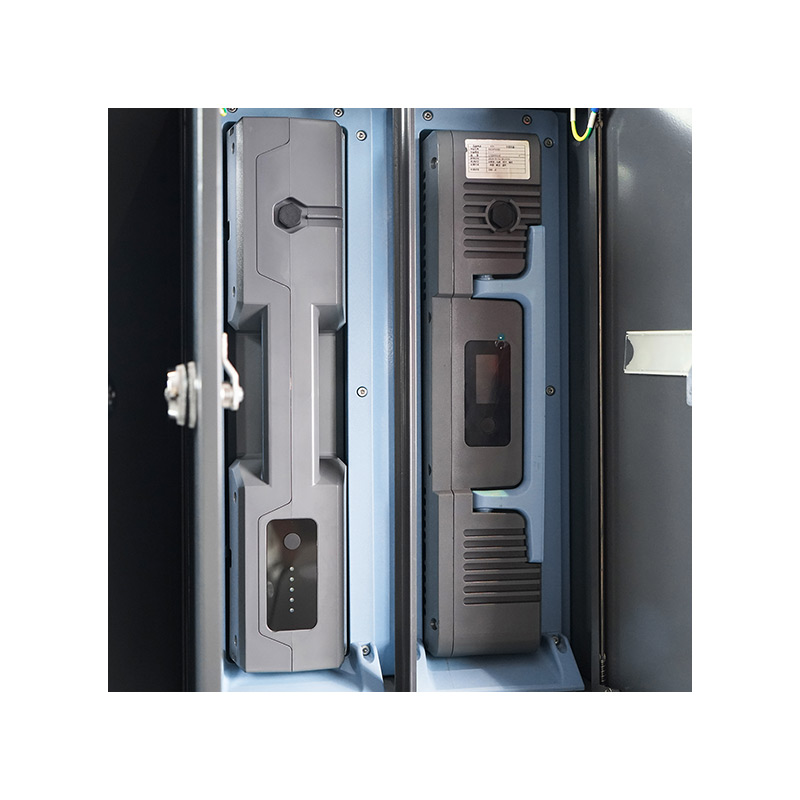

CDG002-Y electric vehicle battery charging cabinet is suitable for charging 11 series and 5 parallel lithium iron phosphate batteries.
No. | Item | Rated parameter | Instruction |

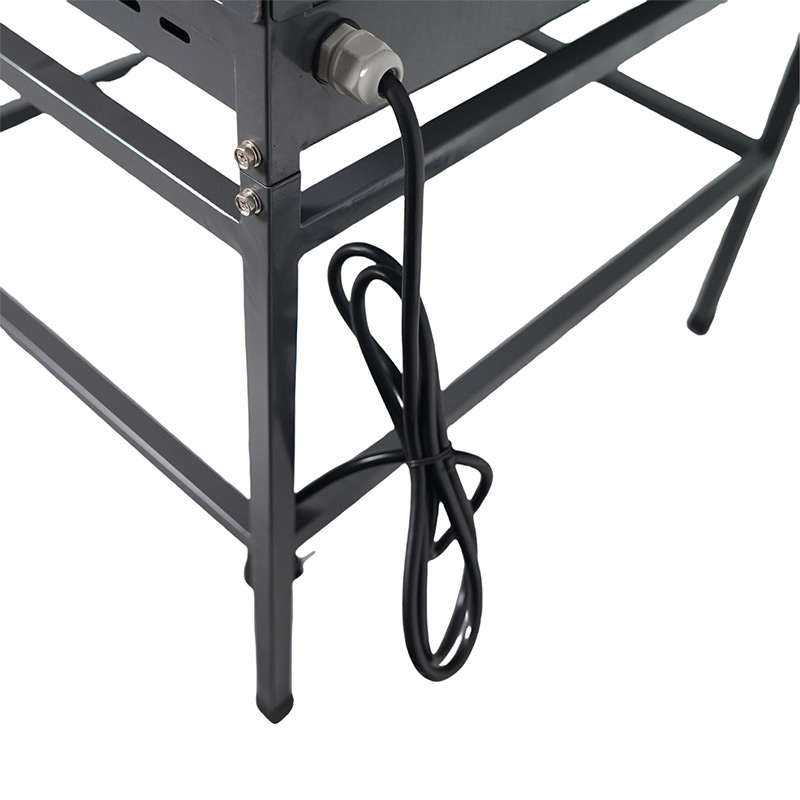

1 | Input voltage | AC220V/50HZ |
|
2 | Indicator | green/red | Charging is red; the green light is on when charging is complete or standby mode |

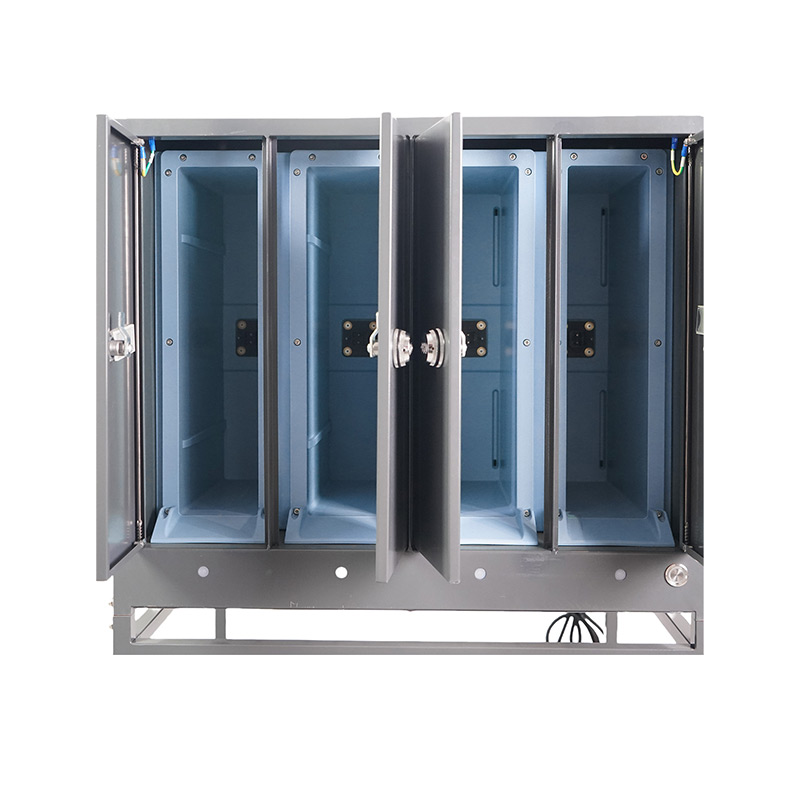

3 | Partition board | 12 Partition board |
|
4 | Output voltage | 42V |
|
5 | Max output watts for single partition board | 63W |
|
6 | Size | 1560.06*653*520mm |
|
7 | Material | Cold-rolled steel plate |
|
8 | Appearance craftsmanship | Spray painting process |
|
9 | Installation | Floor type |
|
10 | Operation temp | -20℃-60℃ |
|
11 | Storage temp | -40℃-85℃ |
|

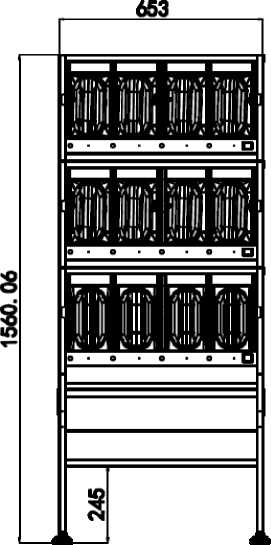

Size: 1560x653x520 (HxWxD) mm
