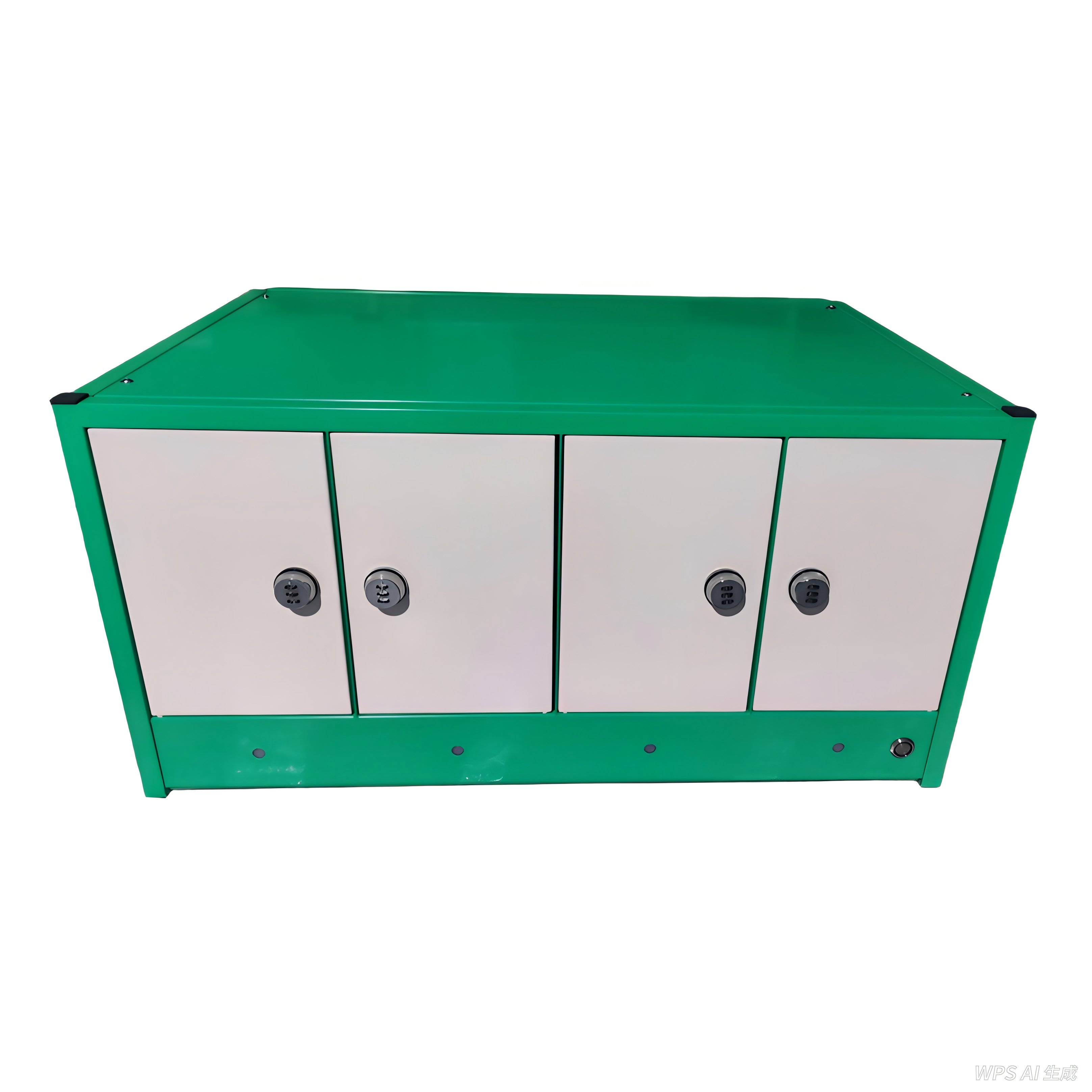

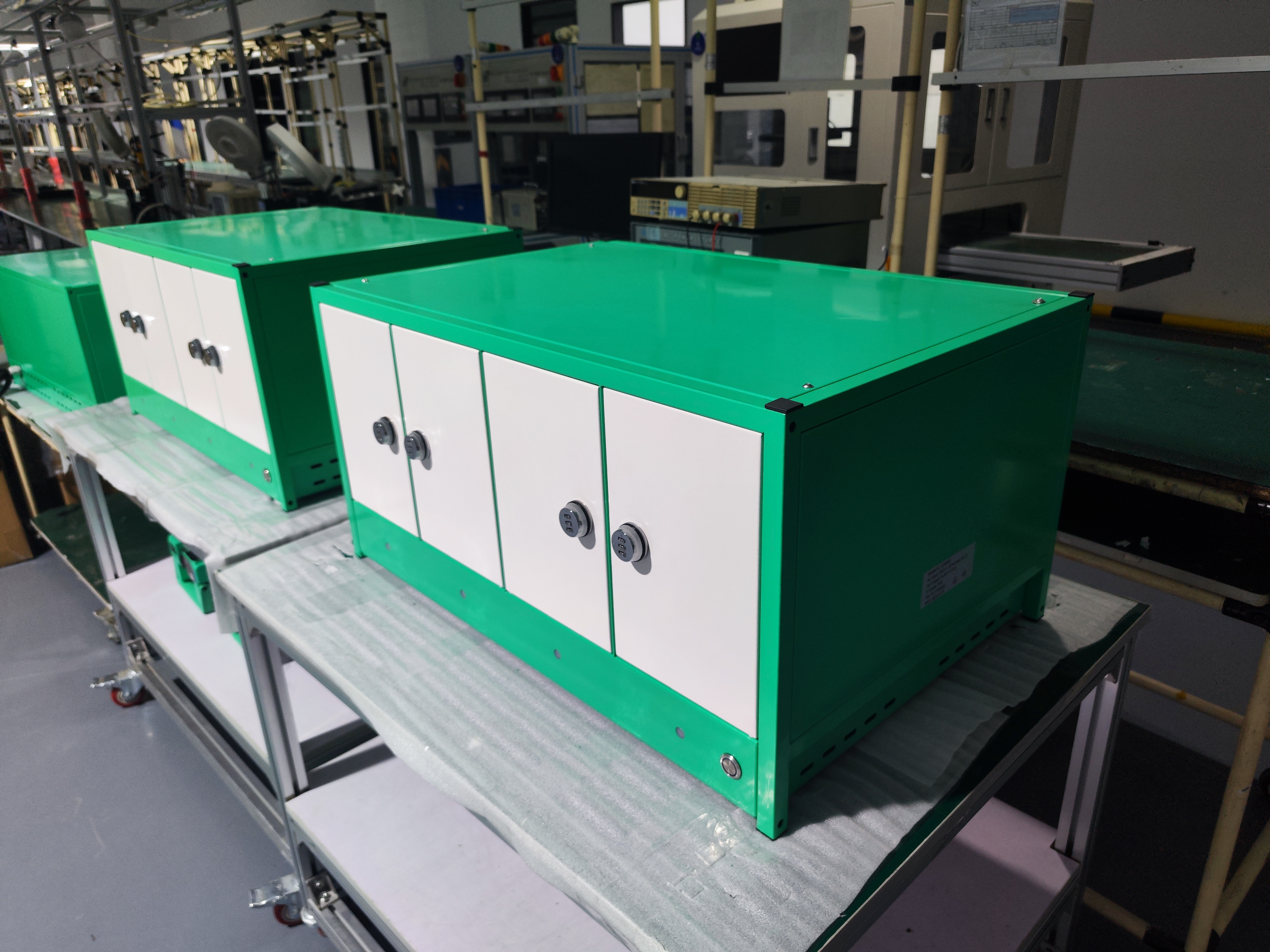

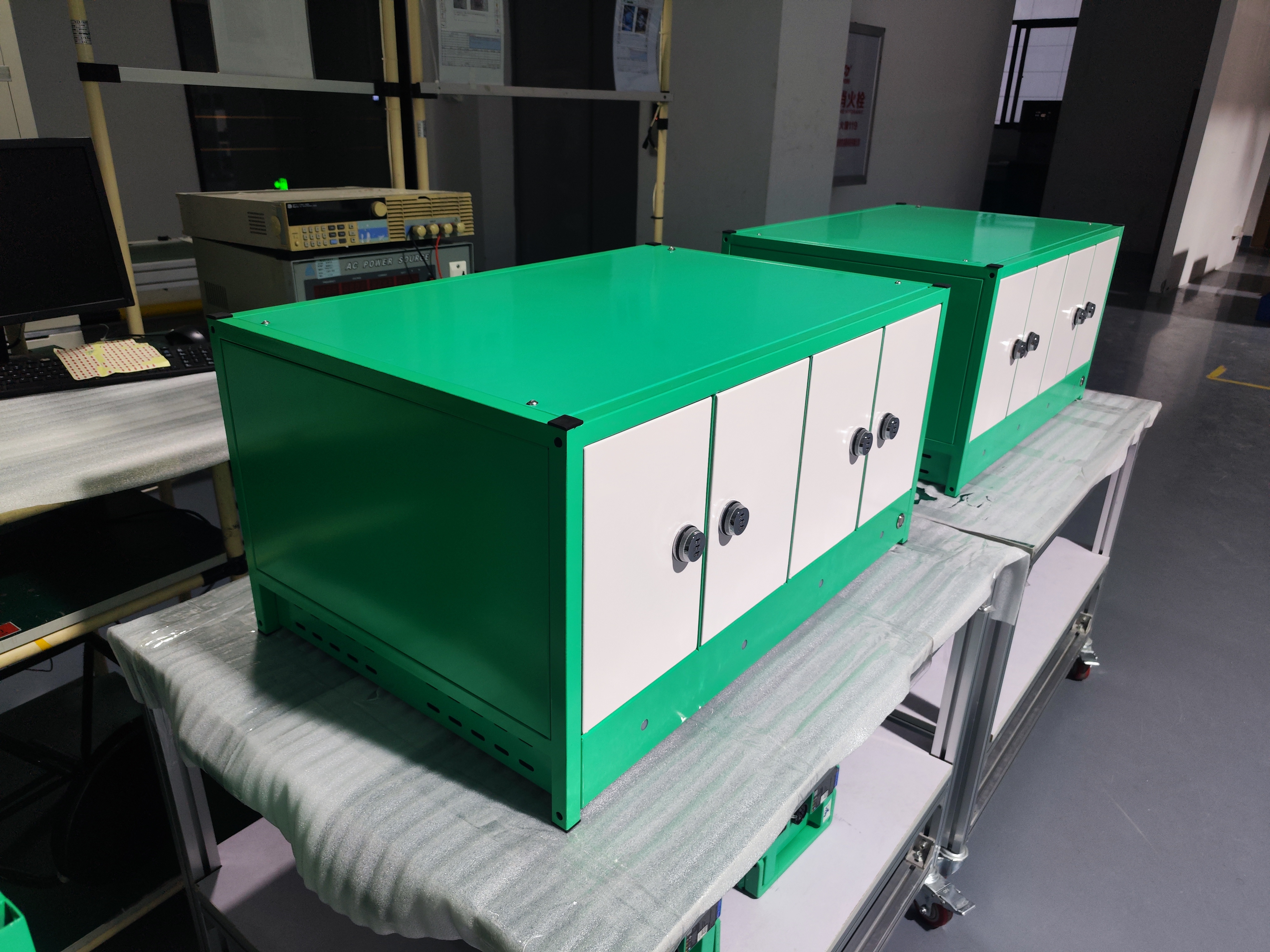

| Quantity: | |
|---|---|
No | Item | Parameter | Remark |
1 | Input voltage | AC100~240V/50~60HZ | |
2 | Indicator | Green/red/green light flash | The charging status and charging indicator are detailed in Appendix 1. |

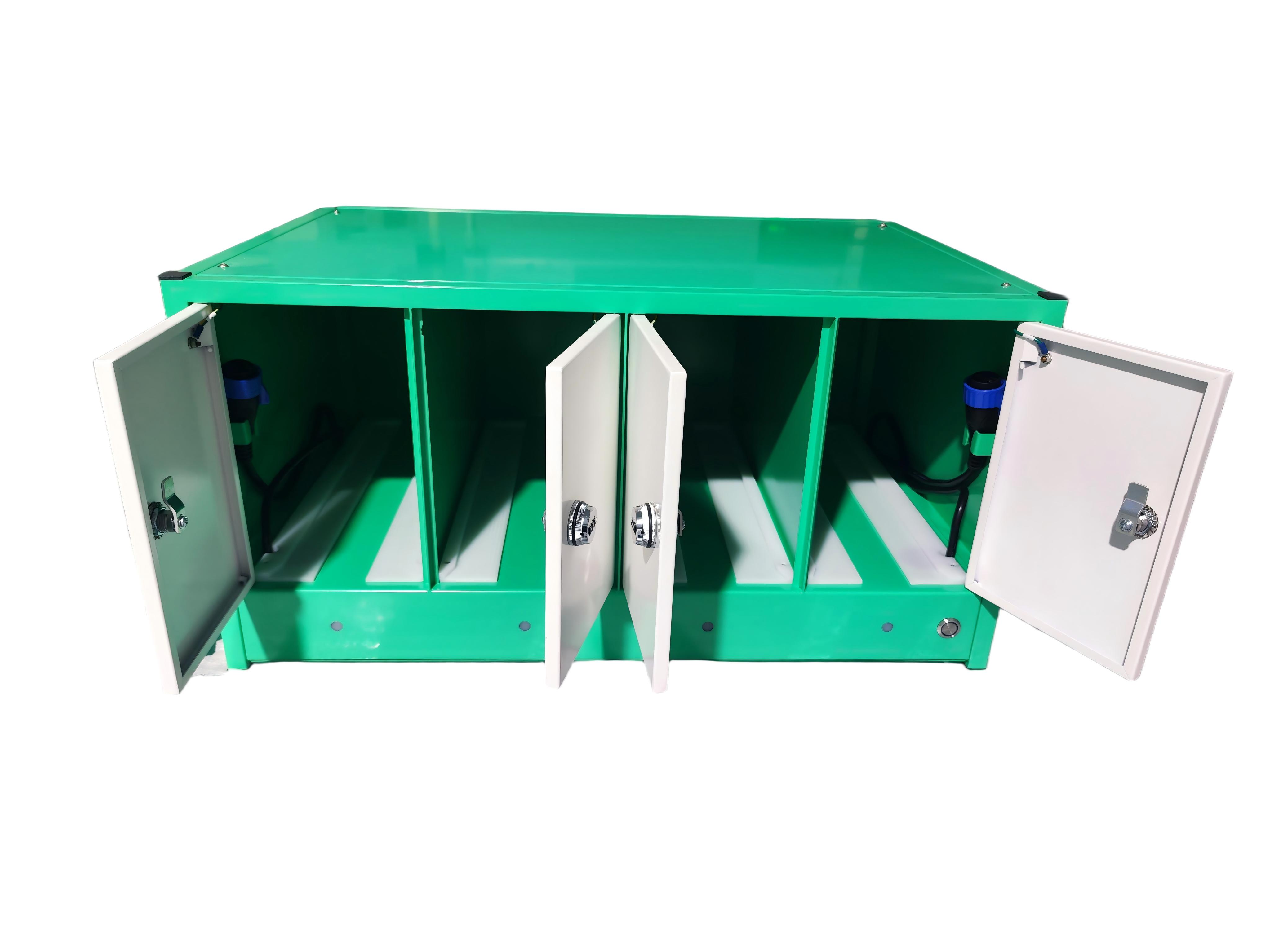

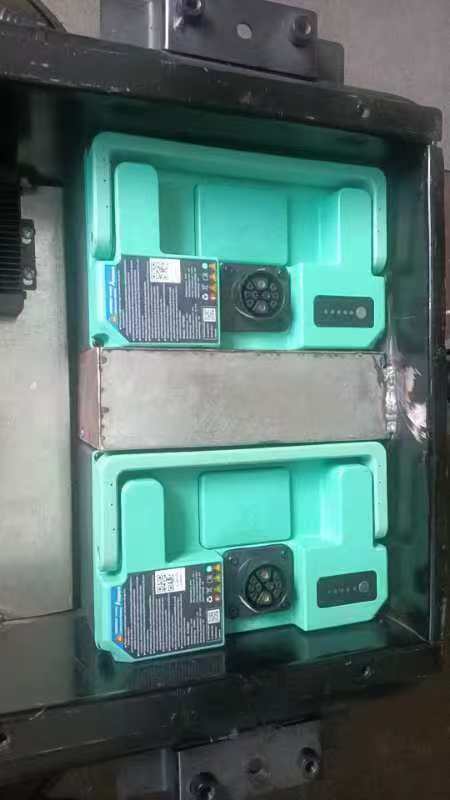

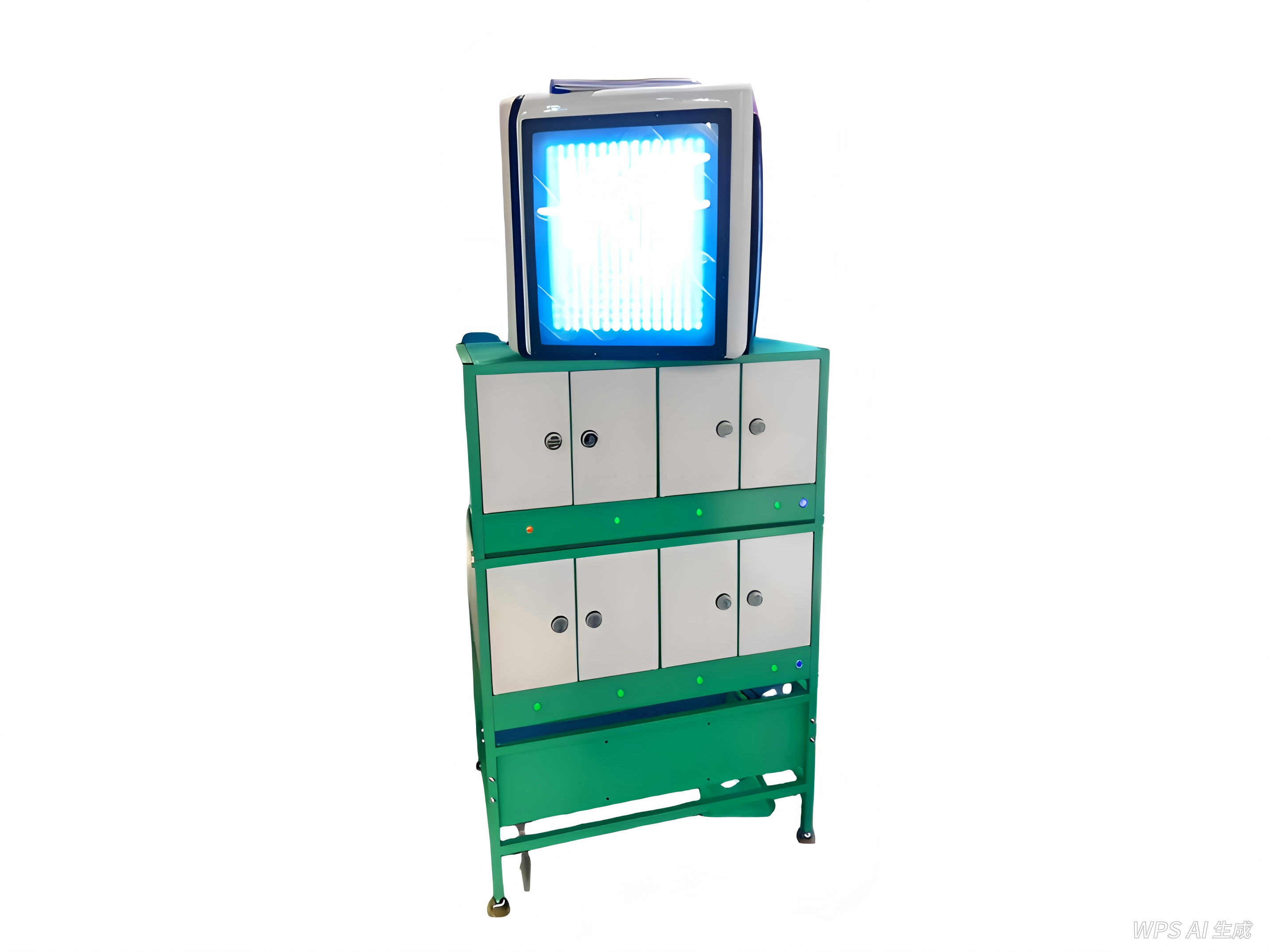

3 | Warehouse number | 4 | |
4 | Output voltage | 85V | |
5 | Maximum output power per compartment | 850W | |
6 | Device dimensions | 800*530*400mm | weight：39. 1kg |
7 | Material and Craftsmanship | Cold-rolled steel plate | |
8 | Appearance Craftsmanship | Spray powder coating | |
9 | Installation method | Floor-standing | |
10 | Work temp | -20℃-60℃ | |
11 | Storage temp | -40℃-85℃ |
Appendix 1：
No | Charge status | Battery pack vol | Indicator status |
Charge current | |||
1 | No load | Unconnected battery Ich=0A | Green light flash |
2 | Activate or precharge | 44±1V≤Vbat Ich=3.33A±0.5A | The red light is on constantly |
3 | Fast charging | 60±1V≤Vbat Ich= 10±0.2A | The red light is on constantly |
4 | Constant current to constant voltage transition point | 84±1V≤Vbat 0.5A≤Ich≤10A | The red light is on constantly |
5 | The battery is fully charged | 85±0.5V Ich＜0.5±0.2A | The green light is on constantly |
6 | Battery failure | Battery under-voltage UVP Vbat＜44±1V | The red light flashes 4 times and the green light flashes 1 time. |
Battery over-voltage OVP 86V±1V | The red light flashes 4 times and the green light flashes 1 time. | ||
Battery Reverse Polarity Alarm | The red light and green light are flashing alternately | ||
Short-circuit output | Red light and green light are flashing at the same time |
