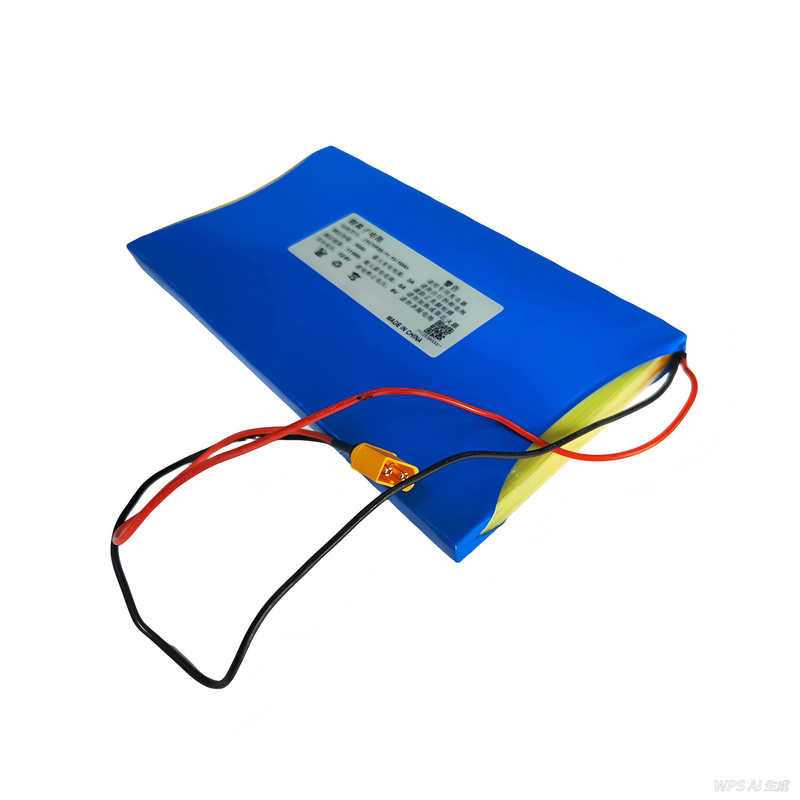

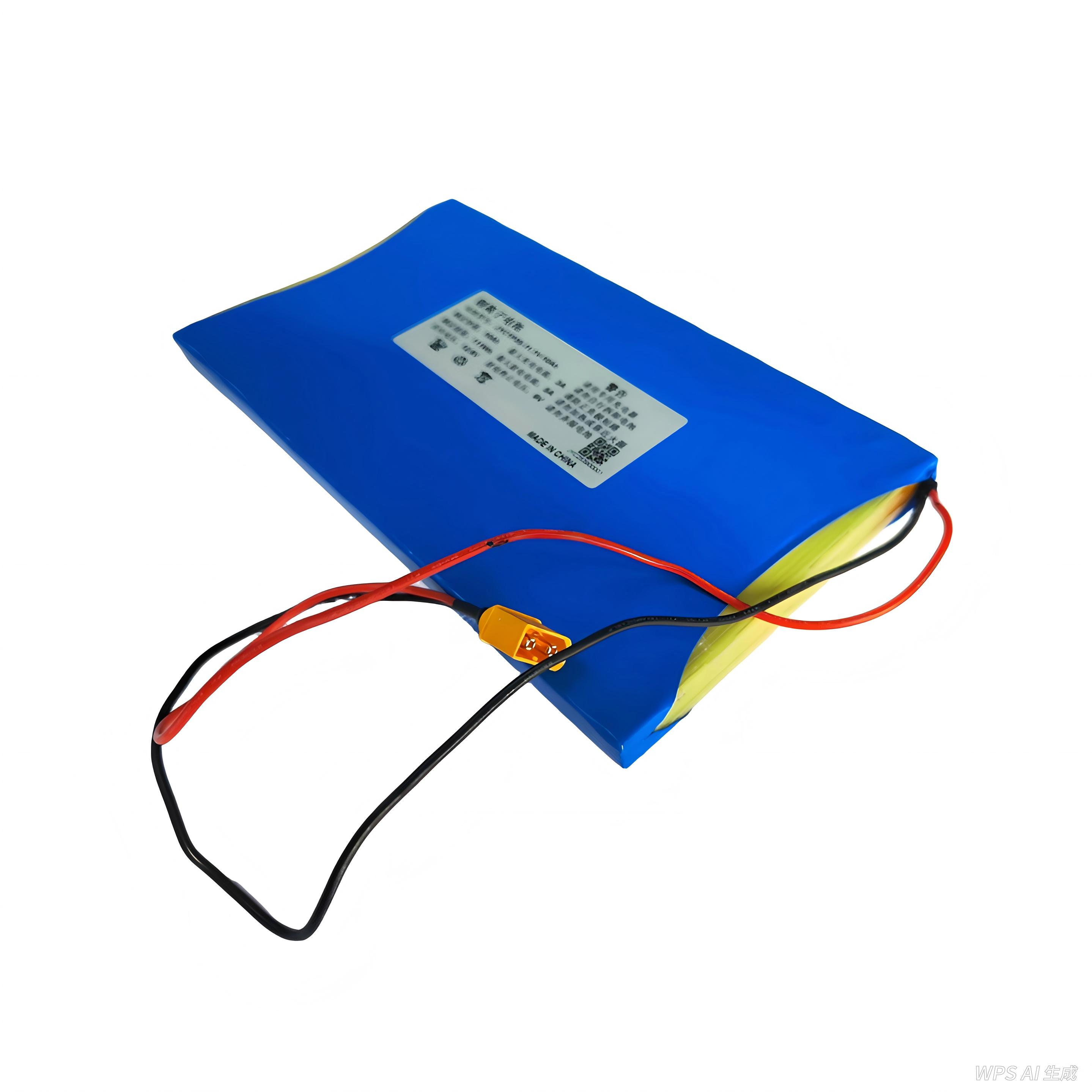

JX-11.1V10Ah
JIAXIN
Application
• Electric products
Кеу Features
• Super long сусlе life
Over 500 cycles at 80%DOD саn bе circularly used.
• Fast charge capability
Very fast charging capability up to 10А
• Low self-discharge
<1% per month at 25 ° С
• Long Life
10 years design life at 25 ° С
• High safety & stable performance
No explosion and nо fire under collision. No risk of leakage
• lntelligent lntegrated Battery Manage System(BMS)
Built-in BMS automatically protects internal cells from over-charge.over-discharge, over-temperature, short-circuit, etc.
Ensure battery safety and reliability.
Equalize and balance each cell.
Prolong battery life.
SOC-DOD-SOH reporting/setting device events, battery parameters, and storage,intelligent monitor, remote measure.remote communication, remote control.
Specifications
No | Item | Parameter | Description | |
1 | Rated capacity | 10Ah | The capacity discharged to 9V at 0.2C after charging at 0.2C under a temperature of 25±2℃ | |
Min capacity | 9.5Ah | |||
2 | Nominal voltage | 11.1V | ||
3 | Charging cutoff voltage | 12.6V | Constant Voltage Charging Mode | |
4 | Discharging cut-off voltage | 9V | ||
5 | Recommend charging current | 2A (0.2C) | ||
6 | Recommend discharging current | 2A (0.2C) | ||
7 | Maximum charging current | 2A（0.2C） | 10-20℃ | |
3A（0.5C） | 20-40℃ | |||
8 | Maximum discharging current | 2A（0.2C） | -20-10℃ | |
5A（0.5C） | 10-55℃ | |||
9 | Charging cut-off condition | ≤0.05C | ||
10 | Operating temperature | charging 10~40℃ | humidity 45%~85% | |
Discharging -20~55℃ | ||||
11 |
Storage temperature |
Recommend |
-20-45℃ | During storage, it should be kept in a clean, dry, and well-ventilated indoor environment where the ambient humidity does not exceed 75%. It should avoid contact with corrosive substances and stay away from fire sources and heat sources. The battery must be charged and discharged once every 6 months and recharged to a relative capacity of 50%~70%. |
Characteristics
No. | Item | Standard Requirement | Test Condition | |
1 | Appearance | No protrusions, discoloration, deformation, or damage | Visual inspection | |
2 | Dimensions |
223*128.2*12.5mm | Measured using calipers | |
3 |
Overall Weight |
Less than 635 g |
Measured using an electronic scale | |
4 |
Internal Resistance | Less than 130mΩ
| Tested at 25±2°C ambient temperature, within 1 hour after standard charging, using a 1 kHz simulated sine wave method | |
5 |
Open Circuit Voltage |
Above 11.5V | Measured at 25±2°C ambient temperature, after 2.5 hours of fast charging | |
6 |
Cycle Life |
At least 80% capacity retention after 500 cycles | Conduct 500 charge-discharge cycles at 25±2°C: • Charging: 12.6V / 0.2C, cut-off current ≤ 0.2A • Discharging: 0.2C, cut-off voltage 9V • Rest time between cycles: 10 minutes | |
7 |
Capacity Retention |
Greater than 97% | After standard charging, store at 25±2°C ambient temperature for 28 days, then calculate the capacity loss | |
8 |
Temperature Discharge Characteristics | 55℃ | ≥95% | Fully charged under standard conditions, then discharge at corresponding temperatures with standard discharge current to the cut-off voltage |
25℃ | ≥100% | |||
-10℃ | ≥60% | |||
